  Lobee Pump & Machinery Co.

    Industrial Pumps and Accessories

Since 1899...Noted for Highest Quality Pumps and Equipment

gears

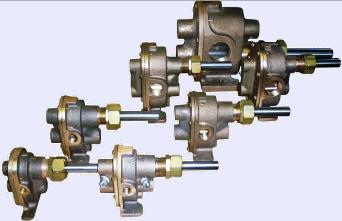

Model LOL Bronze      Heavy Duty Gear Pumps

Available PDF files:

Text Box: Standard Features and Benefits
  All Bronze Body and Gears
  416 Stainless Steel Drive and Idler Shaft
  High Durability for Severe Service
  Std Carbon Graphite Packing
  Viton™ Mechanical Shaft Seal Available
  0-1800 RPM Range of Operation, Flows to 90 GPM
  Bi-Directional Shaft Rotation
  Operating Temperatures to 400 F
  Continuous Working Pressure to 150 PSI
  1/2”, 5/8” & 1” Shaft Diameters

Performance Characteristics

Text Box: With Adjustable Relief Valve, 0-150 PSI...
Text Box:  With John Crane™ Mechanical Shaft Seal...

Available Seals:

1.  Type 2106 Viton

2.  Type 1 Viton Hi-Temp

3.  Type 9 PTFE

Process Pumps for Industry

Applications

Adhesives, Glue

Alcohols

Ethylene Glycol, Anti-Freeze

Fuels-Petrol, Diesel, Kerosene

Glycerin's

Heating Oils

Inks

Molasses

Salt Brine

Sea Water

Solvents

Syrups

Vegetable/Cooking Oils

Vinegars

Water-Tap, Grey, Soapy

Weed Killers

Markets

Agriculture-fertilizers, pesticides

Construction & Mining-lubricants, fuels, coolants

Food & Beverage-syrups, additives

Machine Tool-coolant & lubricant circulation

Marine-bilge pump, fresh water

Mills-coolants, lubricants

Municipalities-liquids transfer

Power Plants & Utilities-coolants, lubricants, fuels

Printing-inks, solvents

Refineries-liquid transfer

Filtration System Pumps

Direct or  Base Mounted Pump Units - Single or Three Phase, TEFC, Wash-down, Explosion Proof

8 NPT Port Sizes-1/8”, 1/4”, 3/8”, 1/2”, 3/4”, 1”, 1-1/4”, 1-1/2”

Performance tested with 70 F Water. The viscosity and specific gravity of other fluids will vary results. Please contact factory for applications with estimated pressure above 100 PSI.



Positive displacement gear pumps have excellent suction lift characteristics and are self priming when wetted. For vertical suction lift should pump run dry between uses, re-’wet’ pump or use foot valve.



Pump flow can be varied by varying input speed with pulleys, a gear reducer, or electric motor inverter (VFD). Never side load pump drive shaft, use a jackshaft/bearing arrangement.

Bottom Shaft

Bronze Gear Pump
