Lobee Pump & Machinery Co.

Industrial Pumps and Accessories

Since 1899...Noted for Highest Quality Pumps and Equipment

Specifications

Operation and Maintenance

Parts Breakdown and Cutaway

LOI Model Build Sheet

General Eng Data—Viscosity

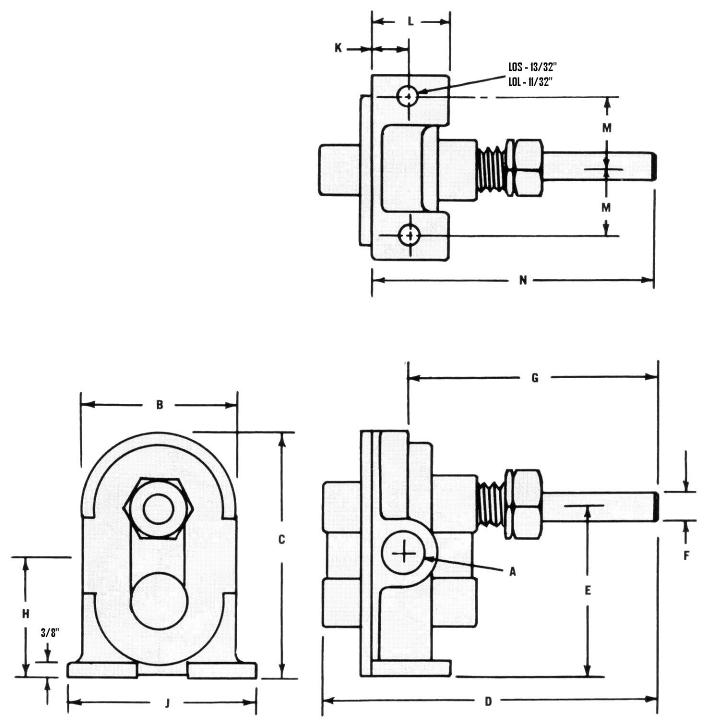

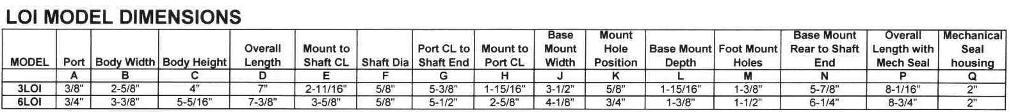

Direct Mount Envelope Dimensions

Model LOI Iron Heavy Duty Gear Pumps

Available PDF files:

Text Box: Standard Features and Benefits All Iron Body and Gears 416 Stainless Steel Drive and Idler Shaft High Durability for Severe Service 2 Sizes -3/8”or 3/4” NPT Ports Std Carbon Graphite Packing Viton™ Mechanical Shaft Seal Available 0-1800 RPM Range of Operation, Flows to 16 GPM Bi-Directional Shaft Rotation Operating Temperatures to 300 F Continuous Working Pressure to 150 PSI 5/8” Shaft Diameter

Performance Characteristics

Repair Parts Always Available

Available Seals:

1. Type 2106 Viton

2. Type 1 Viton Hi-Temp

3. Type 9 PTFE

Process Pumps for Industry

Markets

Construction & Mining-lubricants, fuel oils

Power Plants & Utilities-lubricants, fuel oils

Refineries-liquid transfer

Oil Filtration System Pumps

Uses

Fuels-Diesel, Kerosene

Heating, Lubricating and Hydraulic Oils

Direct or Base Mounted Pump Units - Single or Three Phase, TEFC, Wash-down, Explosion Proof

Please contact factory for applications with estimated pressure above 100 PSI. Positive displacement gear pumps have excellent suction lift characteristics and are self priming when wetted. For vertical suction lift should pump run dry between uses, re-’wet’ pump or use foot valve. Pump flow can be varied by varying input speed with pulleys, a gear reducer, or electric motor inverter (VFD). Never side load pump drive shaft, use a jackshaft/bearing arrangement.
