Lobee Pump & Machinery Co. Industrial Pumps and Accessories |
|
Since 1899...Noted for Highest Quality Pumps and Equipment |
|
VERTICAL SUMP PUMPS |
|
Available PDF files: |
|
Dependable performance is what you expect and get when you install a Lobee Sump Pump. The overall design as well as each individual part has been engineered, tested and proven for trouble-free service and long life. The strainer eliminates the possibility of pump stoppage from trashy material often present in drainage or flood waters. Extra strength pump casing and motor mount castings plus heavy duty bearings reduce vibration and wear even in pumps with extra long columns for deep sumps. Model S pump for open pits has a pedestal base permitting unit to rest directly on the pit floor. Model SA pump is suspended from a cover plate which is placed over the sump opening. Standard units are available in column lengths up to ten feet six inches; special longer lengths are available upon request. Cover plates are available for mounting two units together when a duplex installation is required. |
|
Model S/SH Floor Mounted |
|
Model SA/SHA Cover Suspended |
|
Bronze and 316 Stainless Steel |
|
Explosion Proof Motor & Water Tight Switch |
|
Standard Features and Benefits 1) Heavy Duty Industrial, Continuous Operation Design 2) 1/3, 1/2, 3/4, 1 1/2, 2 and 3 HP Models, Special Application up to 5 HP 3) 1800 and 3600 RPM Motors, Up to 145 GPM 4) Total Dynamic Head to 85’ Vertical 5) Column Lengths to 10’6”, Special Lengths Upon Request 6) Floor Mount or Suspended-From-Cover Models; Standard and Custom Suspended Cover Designs Available. 7) Cast Iron, 316 Stainless Steel, and Bronze Construction Materials Available as Standard 8) Bronze, PEEK or Rulon™ Bearings for High Temp or Corrosive Applications 9) Motors include: Premium/Energy Efficient, TEFC, Washdown, Explosion Proof, 3 or 1 Phase 10) Water Tight and Explosion Proof Float Switches 11) Duplex Pump Systems for 100% Redundancy 12) 1-1/2” NPT or ANSI 16.5 Flange Discharge Port |
|
All 316 Stainless Steel |
|
Choose Your Options |
|
Process Pumps for Industry |
|

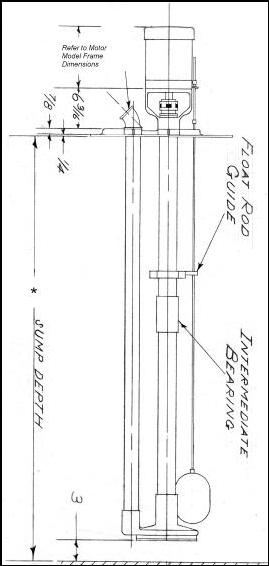

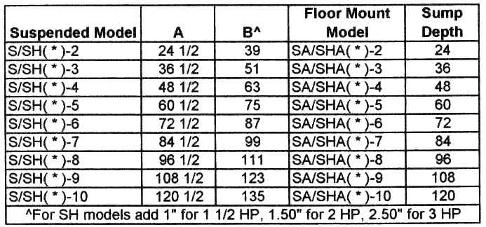

General Dimensions *Horsepower Model (3,5,7,15,20,30) |
|
Model S/SH, Floor Mounted |
|
Model SA/SHA, Suspended |
|
Pump Head |
|
Sump Cover Double |
|
Sump Cover Single |
|
11 1/4” |
|
8 1/2” |
|
Custom Cover Plates |
