Model LOE 316 Stainless Steel Gear Pumps

Available PDF files:

Features and Benefits

1)  All 316 Stainless Steel Construction Standard

2) Optional Alloy 20, Hastelloy™ Construction Materials

3) Standard Composite PTFE Idler Gear

4) Optional UHMW Idler Gear

5)  FDA Compliant Materials Available

6)  5 Sizes- 1/4”, 3/8”, 1/2”, 3/4”, 1” NPT Ports

7)  Bi-Directional Shaft Rotation, 200-1800 RPM Operating Range

8)  Flows to 18 GPM

9)  Operating Temperatures to 450 F+

10)  Continuous Working Pressure to 100 PSI

11) ½” Shaft Diameter

12) Std PTFE Packed Shaft

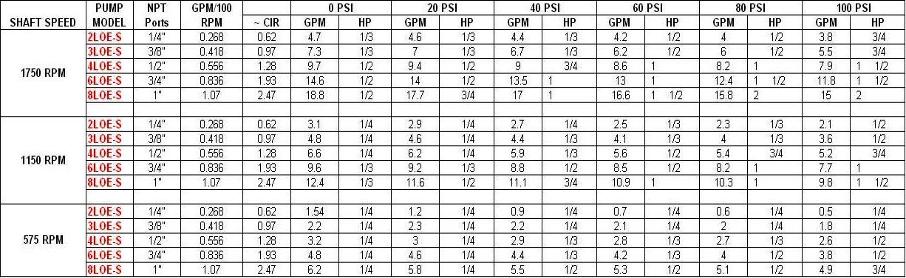

Performance Characteristics

Direct Mount Adapter Kit for C-Face motors

Pump Unit Envelope Dimensions

Hydro Silica Pressure Cleaning Equipment

Markets

Energy/Biofuel-deionized water, urea

Chemical Processing-acids, corrosives

Manufacturing-resins, coatings

Food/Beverage-additives, oils

Pharmaceutical-mixing chemicals, alcohols



Applications

High Temperature

Acids

Corrosives

Chemicals

Foods, Beverages

Oils

Standard Wetted Pump/Seal Materials:

316 Stainless Steel

Composite Glass/PTFE, PTFE

Rulon™



Optional Wetted Pump Materials:

316L, Alloy-20, Hastelloy™, WM88

Ketron®  PEEK 1000, HPV

UHMW

Direct Mounted to 56C Motor

Available with Single or 3 Phase, TEFC, Washdown or Explosion Proof Motor. Optional Motor Inverter (VFD) for Variable Speed Control also available.

Performance tested with 70 F Water. The viscosity and specific gravity of other fluids will vary results. Please contact factory for applications with estimated pressure above 100 PSI. Positive displacement gear pumps have excellent suction lift characteristics and are self priming when wetted. For vertical suction lift should pump run dry between uses, re-’wet’ pump or use foot valve. Pump flow can be varied by varying input speed with pulleys, a gear reducer, or electric motor inverter (VFD). Never side load pump drive shaft, use a jackshaft/bearing arrangement.

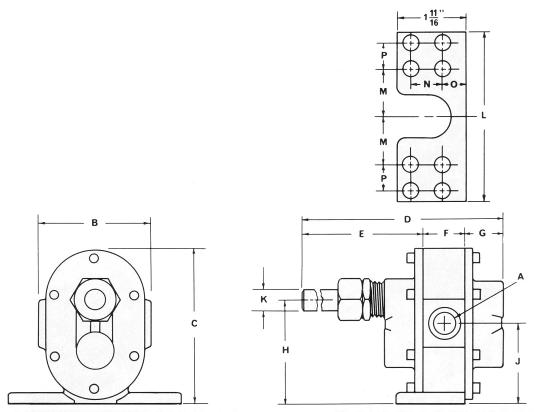

Dimensions
