  Lobee Pump & Machinery Co.

    Industrial Pumps and Accessories

Since 1899...Noted for Highest Quality Pumps and Equipment

Specifications

Operation and Maintenance

Parts Breakdown and Cutaway

General Eng Data—Viscosity

Model LAL Nickel Silver Alloy Gear Pumps

Available PDF files:

FEATURES

1)  Nickel Silver Alloy Construction

2)  4 Sizes- 3/8”, 1/2”, 3/4”, 1” NPT Ports

3)  Std Braided Teflon Packing

4) Acetal Journal Bearings Standard

5) Optional John Crane™ Type 2106 Viton™ Mechanical Shaft Seal

6)  Flows to 18 GPM

7)  Bi-Directional Shaft Rotation, 0-1800 RPM Operating Range

8)  Temperature to 400 F

9)  Continuous Working Pressure to 150 PSI

10)  ½” Shaft Diameter

11)  Potential as Inexpensive Solution vs. 316 Stainless Steel

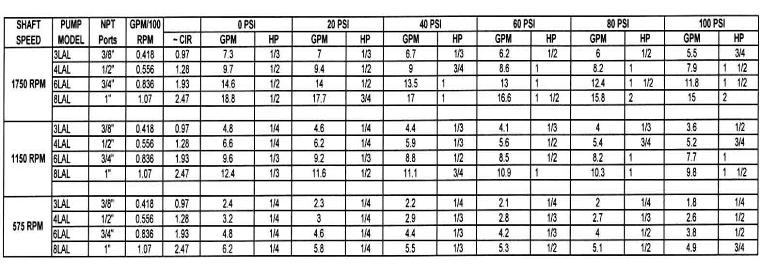

Performance Characteristics

Direct Mount Adapter Kit for C-Face motors

Pump Unit Envelope Dimensions

Hydro Silica Pressure Cleaning Equipment

Direct Mounted to 56C Motor...

With John Crane™ Mechanical Shaft Seal...

Repair Parts Always Available
